Steel Bar Construction Material Testing Equipment Reverse Bend Test Equipment

Name: Steel Bar Construction Material Testing Equipment Reverse Bend Test Equipment
Brand: RECEN
Price: 1 USD

Wholesale Steel Bar Construction Material Testing Equipment Reverse Bend Test Equipment from china suppliers

Brand Name : RECEN

Model Number : RC-TM-002

Certification : CE, ISO9001, SGS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 5-10 days

Packaging Details : Plywood Box

Power : Hydraulic

Usage : Bending Testing Machine

Warranty : 12 Months

Product name : Testing Machine

Product Siz : 1200 * 750 * 1200 (mm)

Reverse angle : 0 °~ 90 °

Contact Now

Test Equipment Steel Bending Reverse Bending Steel Bar Bending Testing Machinery

Product Profile

Measuring quality and technology supervision department, steel production enterprises, construction industry, scientific research institutes and other applicable.

Main Characteristics

1. Driven by high power components, the applicable scope is wide;

2. Using Japan Panasonic PLC controller control, equipment operation reliability is stronger;

3. Using high sensitive sensors rotate signal, angle control more precise;

4. Driven by belt brake motor, the test is finished shut down responsive more quickly;

5. The machine adopts LCD display, the results more intuitive;

6. The machine frame with thick wall pipe welded together, ensure the equipment running stable;

7. Equipment for bending core are the use of high strength steel after heat treatment, long service life.

8. The machine is equipped with protective cover in working area, more can protect the safety of the user.

Items	Technical speciation
Range of diameter of steel bars	Ø 6-Ø 40mm
Angle of bend	0°-180° with the arbitrary set
Angle of rebend	0°-90° with the arbitrary set
Bending speed	1.5r/min
Power of motor1.5	kw
Outline size of the host(L×W×H)	1200×750×1200(mm)
Power	220v

Product Tags:

building material testing equipment

compression testing machine

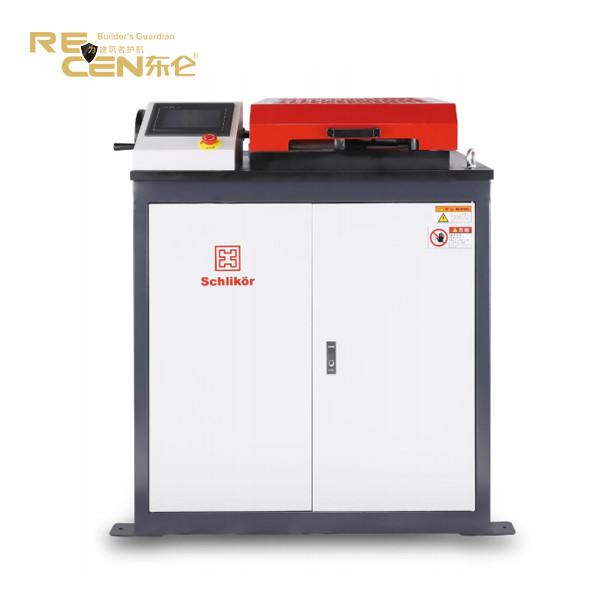

Steel Bar Construction Material Testing Equipment Reverse Bend Test Equipment Images
